CCD HD night vision car camera front/side/left/right /rear view camera 360 degree Rotation universal car reverse backup camera
| Price : | |
| Sale Price : | US $16.38 / 1 piece |
| Discount : | 47% |
| Valid Time : | 2018-03-01 |
Description Product
TOP sale product
can control mult cameras
please read "Common problems and solutions" before you order,it is below
Main feature:It can be 360 degree rotation
Note: CCD camera is high clear, better quality than the Colorful CMOS andCMD.

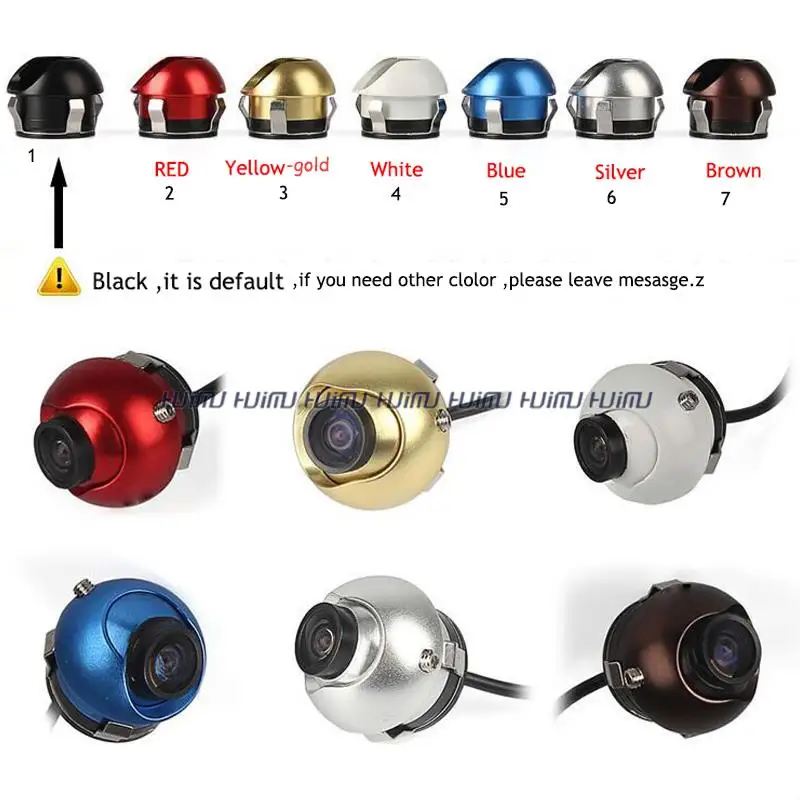

we have seven colors for this camera,Black camera as default ,if you need other color ,please have to leave message.
(you can't leave message if the package will be send form USA or Russian)
Because the light,or monitor screen. individual product pictures and real color may be difference, it's normal phenomenon.please understand.thanks.
very professional 360 camera ,please view the explain.
compare with the power wire
we select only 2mm high cost of enameled wire, in the case of high quality ,it have better antiinterference ,and it is very small and soft ,so it is very easy to insall and adjust the camera angle
view the below picure ,if we use wire (2) ,the a is difficult to adjust 90 degree ,because the position b is very narrow. another, car rear-view mirror have no
enough of position.
The cable as below (6m AV cable as default)
| (it is default) | If you need ,you have to leave message to us ,only can be send from China ,Can't select for Russian and US shipment) |
Kindly note: (If you want to buy wireless camera ,
please first you put the two product links into "add to car" then to buy
GUide: select your product
wireless camera only include :camera ,wireless reciever and Transmitter,manual ,not include wire.
Common problems and solutions(Kindly answer your questions:)
(1) Can this camera install on rearview mirror recorder?
NO, it can't ,Usually it can connect TFT monitor, mirror monitor,RCA DVD ,but can't support any 5V Driver recorder,for example ,mirror DVR
(2) Is the camera front /side or rear view?
the camera can be rear view /front view /side view . please buy it according the options
(3)the camera have 7 colors ,do we can select the colors?
when the camera will be send from USA or Russion ,you can't select ,please buy according to the
when you slect shipping from China, you can select from the 7 colors .but have to leave message to us.
(4)about the video line, it is AV or AVIN(2.5mm) for portable?
AV is default,if you need AVIN ,please leave message follow your order,(only support Shipment from China )
(5).Why the image occurred jitter, splash screen, interference,unstable, Black and white color when you are reversing?
1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,
if your monitor is PAL system, it will be showed jitter , Black and white color.
Solution:
a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.
Because there are many monitor with 2 system in market, it can set. But some old-type GPS can't set. So please choose the right system to fit the camera.
b. Please must check the right cable connection installation.
c. If above solutions still can't deal, please ask your local professional car staff for help.
2)The image occurred jitter,splash screen, unstable just because the
voltage is lower than we suggest.
Solution:
Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,
it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.
(6)our car have video and power cable,Can you use it when I buy this camera?
Yes, it can, it support RCA plug. But we suggest you don't use youself cable, because the line may be aging and defined different .
7.How to install?
a. For universal camera, it installs through 2 screws and backrest or .it can fix near the location of license plate light.
b. For dedicated camera, it installs in license plate light directly. We suggest you install the camera in professional car modification and beauty shop
Installation as shown
| Image Sensors | 1/3" Color CCD |
| TV System | NTSC/PAL(NTSC is default) |
| Effective Pixels | 728X582/728x512 |
| Sensing Area (mm) | 3.3 x 2.6 |
| Resolution (TV Lines) | 480 |
| Minimum illumination | <0.1 Lux / F1.2 (with LED 0 LUX/F1.2) |
| Horizontal Sync.Frequency | 15.625 KHZ |
| Vertical Sync.Frequency | 50 HZ |
| Video Output | 75 Ohm |
| Gamma Consumption | 0.45 |
| AGC | Auto |
| BLC | Auto |
| Night Vision | Yes |
| IP Rating | IP66 |
| S/N ratio | Better than 48dB |
| Lens | F=1.6 |
| Lens Angle (Deg.) | wide angle |
| Current Consumption (mA) | 85-115 |
| Power Supply (DC V) | 12 |
| Operating Temperature (Deg.C) | -20~+75(RH95% Max.) |
| Storage Temperature (Deg.C) | -40~+85(RH95% Max.) |
| For wire camera (this link only wire) 1 x car Camera 1x 6m video cable 1x power supply cable 1X user manual | For wireless camera: 1x car camera 1x Transmitter 1x receiver 1x user manual |
We ship within 24 hr. after payment is received
The order will be shipped Post Air Mail. if you need other shipping way,please feel free to
It 's our honor to provide excellent service for you, thank you!
(1) Damage caused by: Undue wear & tear, dirt, misused, improper installation or operation, neglect, accident.
(2) Any damages caused by improper packaging when buyers return the item to us.
(3) If the item was disassembled or repaired by unauthorized person.
Please leave us positive feedback and 5 stars in all detailed ratings if item received in good condition;
For Buyers that is not satisfied with your shopping Experience, you can always contact us first before you leave feedback;every problem could be worked out via good communication between both sides.
