HH OBD ELM327 Bluetooth OBD2 OBDII CAN BUS Check Engine Car Auto Diagnostic Scanner Tool Interface Adapter For Android PC

Price :US $13.30 / 1 piece
Sale Price :US $7.71 / 1 piece
Discount :42%
Valid Time :2017-06-23
From Aliexpress.com



Description Product

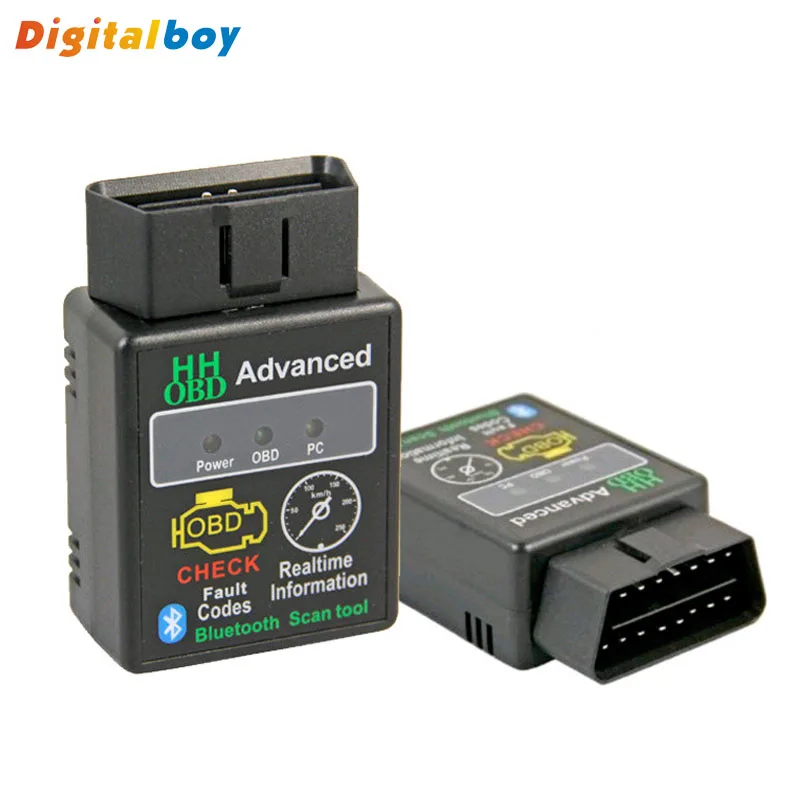

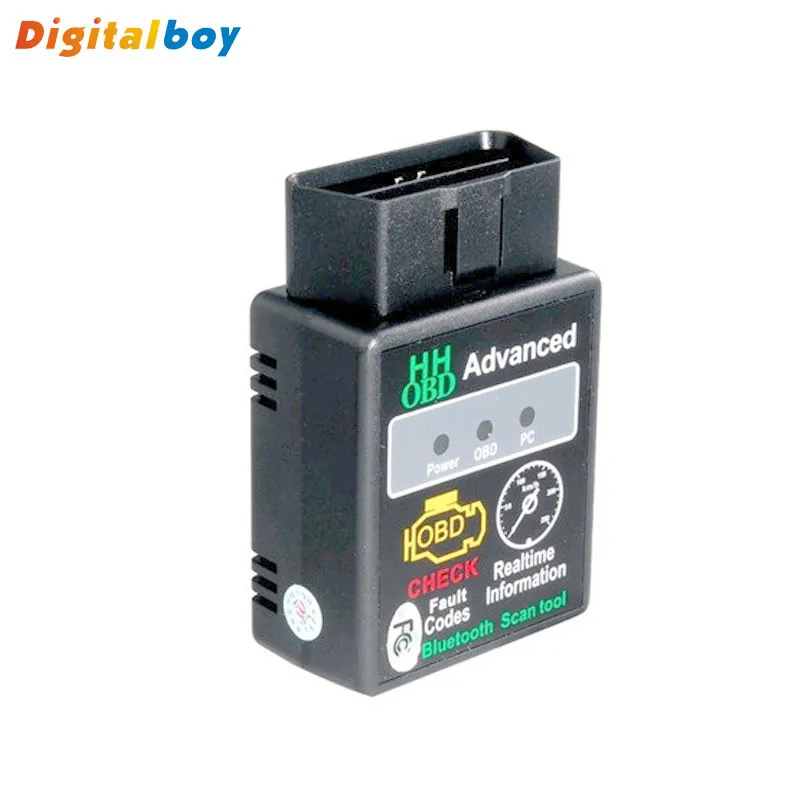

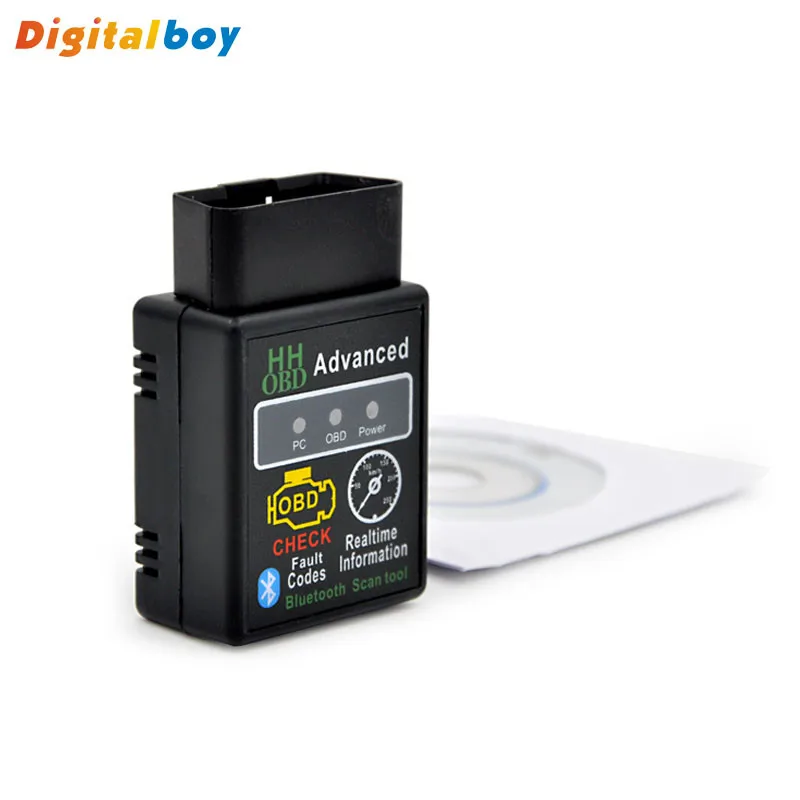

HH OBD MINI ELM327 Torque Android Bluetooth OBD2 OBDII CAN BUS Check Engine Auto Scanner Interface Adapter ECU Code Reader

Description

1.This is an vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.

2.OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get theinformation from your car's computer.

3.The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.

4. To uninstall theprogram, simply delete the entire contents of the folder where the program resides.

5.The software supports four platforms - DOS, Windows, Android. This product is a non-oem, generic product.

Specification

  • Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM
  • Device type: Car bluetooth read interface scanner
  • Interface type: Auto ELM327 V1.5 interface
  • Free software:
    1. Scantool.net
    2. GM Mode 22 Scan Tool by Terry
    3. OBD Gauge for PalmOS and Pocket PC by Dana Peters
    4. OBD Logger by Jonathan Senkerik
    5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
    6. obd2crazy.com
    7. OBD2 Scantool by Ivan Andrewjeski
    8. OBDII for ELM322 by David Huffman
    9. pyOBD by Donour Sizemore for MacOSX and Linux
    10. RDDTC by Pete Calinski
    11. Real Scan by Brent Harris
    12. ScanTest for Pocket PC by Ivan Ganev aka a-ser
    13. wOBD by WDT

Features

Automatic

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Super mini bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols

Net Weight: 0.1KG

• Works with all OBD-II compliant vehicles
• Wireless (Bluetooth)
• Software included for Palm, PDA
• Software included for Windows PC
• Software included for Windows Smartphone
• Supports ISO 9141, KWP2000
• Supports SAE J1850
• Supports CAN bus

Functions:
• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Display current sensor data, including:
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure
• Many others...

1.The Smaller Size ELM 327 MINI Bluetooth

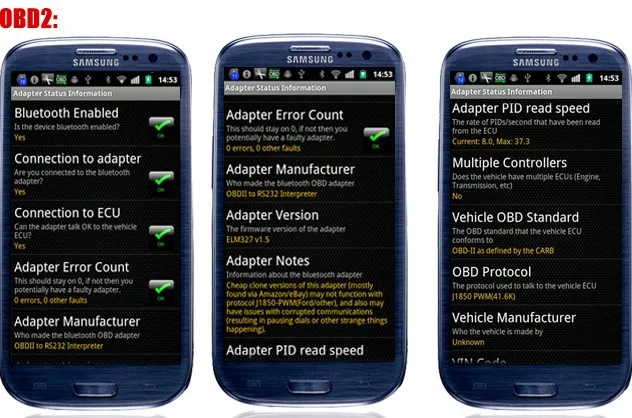

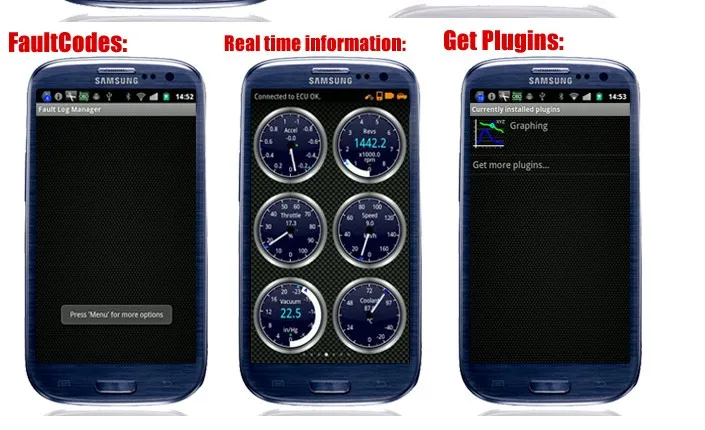

2.Woks on Android Torque/PC
3.Bluetooth Password: 0000/1234/6789
